Script or CSV Discovery Method

The script or CSV discovery method lets you use a script or CSV file to specify which devices are added. This allows you to retrieve devices from a configuration database or other repository.

Setting Script or CSV Discovery Method

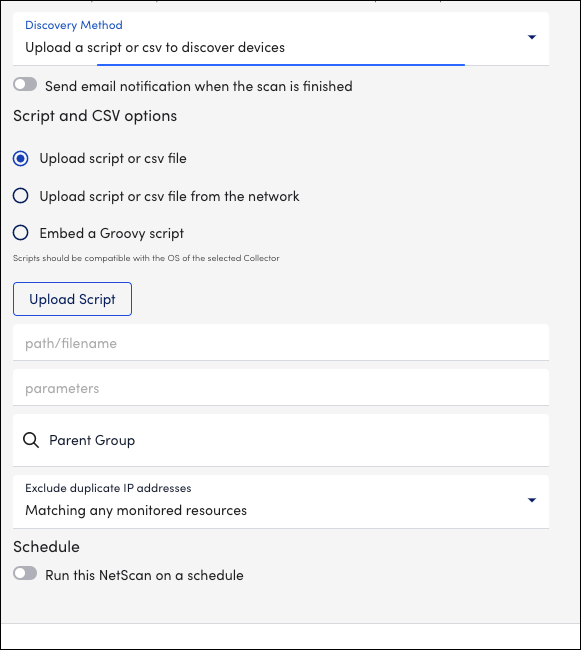

1. Navigate to Settings > NetScans > Add Advanced NetScan.

2. In the Script and CSV options section, enter the following details:

• Upload script or CSV file – For an external script file, complete the following:
  • Upload the script.
  • Specify the path to the uploaded script to be used by Linux and/or Windows Collectors. The path must be local to the Collector using the script.
  • Specify any parameters needed by the uploaded script. The parameters can be passed by a combination of positional arguments and named options. If both are used, options should be passed in first, then arguments (For example, opt1=xxx opt2=yyy argument1 argument2).
• Upload script or CSV file from the network – Enter the URL and the parameters for the required network.
• Embed a Groovy script – To embed a Groovy script, do the following:
  • Enter the code for your Groovy script.
  • Specify any parameters required by your script. You can pass the parameters by a combination of positional arguments and named options. If you use both, ensure to pass the options must be passed first, then arguments. (For example, opt1=xxx opt2=yyy argument1 argument2).

CSV File Requirements

The process for running a NetScan that uses a CSV file is nearly identical to that of a script-based NetScan. Since most CSV files are static, you cannot schedule a CSV NetScan.
Your CSV files must meet the following requirements:

• The first line of the CSV file must be your column headers. There are four valid headers: “IP”, “displayname”, “hostgroup”, and “properties”. Both “IP” and “displayname” are required column headers.

• If hostgroup is specified, it must use the full group path.

• Multiple properties for any given resource can be added. These must be line-separated in the “properties” column and the entire property field enclosed in double quotes, as shown in the following example.

IP,displayname,hostgroup,properties
10.0.0.10,Device from CSV,New Target
Group,"prop.one=firstproperty prop.two=secondproperty"
10.0.0.11,Another Device from CSV,New Target
Group,"prop.one=firstproperties
prop.two=secondproperties"

• Within the key-value pairing, the value can contain “=”. For example, the notation “A=B=C” represents a key=value property in which “A” is the key and “B=C” is the value.

• Once the required headers “IP” and “displayname” are configured, a resource is added to your account even if properties are misconfigured.

• CSV files are separated by commas, to include a comma within an individual CSV cell, you must surround that cell with double quotation marks.

• If you need to include quotes within a cell, they must be escaped by surrounding the quotes with another set of double quotes per CSV standards, as shown in the following example.

IP,displayname,hostgroup,properties
10.0.0.10,Device from CSV,New Target
Group,"prop.one=""firstproperty""
prop.two=""secondproperty"""

• If a cell includes a multi-line string, the entire string should be surrounded by double quotes.

• Once added to your account, the prefix “system.” will be removed from the resource properties. System auto-properties are an exception, these properties include: system.ips, system.sysinfo, system.sysoid, system.db.mysql, system.db.mssql, system.db.oracle, system.db.db2, system.ec2.resourceid, system.ec2.region, and system.virtualization.
  If the prefix “systems” is absent from these properties, it will be appended to them upon discovery.
