PropertySource Configuration

Last updated on 18 September, 2024

PropertySources auto-assign properties at the resource level, based on the output of a Groovy or PowerShell script. This has a wide range of benefits for improved inventory tracking and reporting, troubleshooting, and dynamically grouping devices based on their shared properties.

Note: To use PropertySources for cloud resources, you’ll need to enable monitoring via a local collector. For more information, see Enabling Monitoring via a Local Collector.

Configuring a PropertySource

  1. In the LogicMonitor navigation menu, select Modules.
  2. From My Module Toolbox, select Add .
  3. In the Add window, select PropertySource
    The Add New PropertySource window displays and contains tabs for Info, AppliesTo, and Collection.
    Add new propertysource page
  4. On the Info tab, enter the following information:
    • Name: Specify the platform or application and, if necessary, a specific component of the platform.
    • Description: Provide enough detail to ensure that the PropertySource’s purpose can be easily determined.
    • Group: Specify the group to which the PropertySource will be added. If this field is left empty, the PropertySource will be added into the default @ungrouped group. If you enter text that does not match an existing PropertySource group, a new group is created.
    • Data Type:
      • PropertySource (default)
      • Use ERI Source if the PropertySource is being created for the purpose of assigning external resource IDs (ERIs) to resources for topology mapping. For more information, see Topology Mapping Overview.
    • Technical Notes: Enter any notes or technical information.
  5. On the AppliesTo tab, do the following:
    • The AppliesTo field accepts LogicMonitor’s AppliesTo scripting as input to determine which resources are associated with this PropertySource. For more information, see AppliesTo Scripting Overview.
    • Select the Test AppliesTo icon. This test returns a count of matching resources, and displays them in the AppliesTo Results panel.
  6. On the Collection tab, do the following:
    • Select Embedded Groovy Script or Embedded PowerShell Script.
    • Select the Test Script icon.
      Collection modal

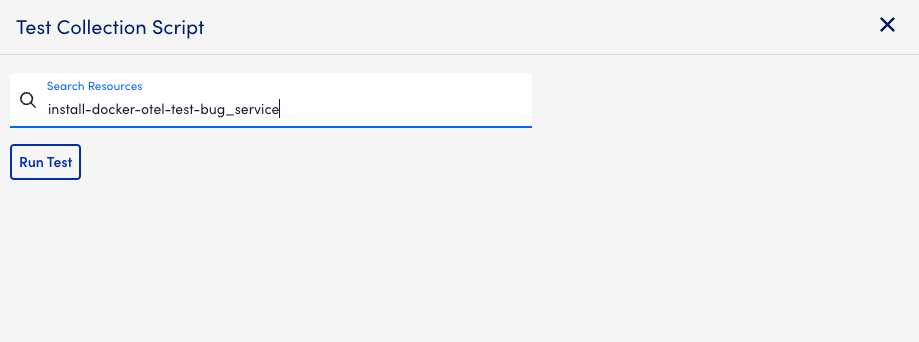

  7. On the Test Collection Script window, search for and select a resource to test the script against, and then select Run Test.
    This feature tests your script’s ability to properly assign the designated properties to a device.
    Test collection script modal
  8. Select Save.
